Exploded View

Step 25

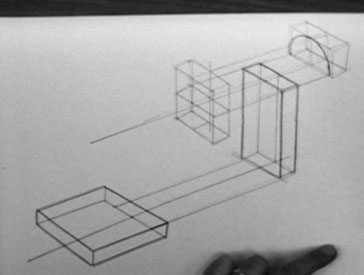

Draw the front face face of the half disk. It shows up as a half ellipse. Use the technique outlined in week 3 to draw this ellipse. Start with points of tangency then fill in the rest.
