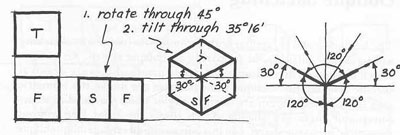

This week’s topic is isometric projection. In previous exercises pictorial sketches of various solid objects were drawn without too much regard for the precise orientation of the principal edges of these objects. In isometric sketches these edges are drawn in a special way. The visible edges defining the intersection of the three surfaces are drawn at specific angles - two at 30° with the horizon and one vertical.
