Exploded View

Step 31

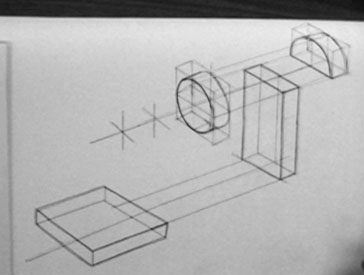

There is a hole that goes through the full and half disk with half of the diameter. We will show this as a cylinder of thin air. First draw the centre lines for the front and back face. This cylinder is twice as thick as the disks.
