Example

Step 11

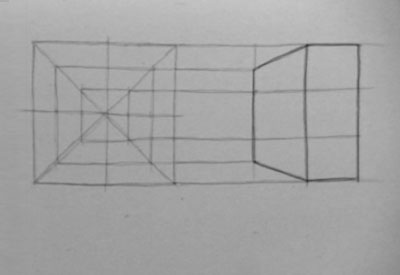

Start darkening some of the outside lines. Next, project lines from the inside square to the side view to obtain the diameter of the drilled hole.
